  1. HIGH PERFORMANCE CABLES
  2. AMT ALFING MONTAGETECHNIK
  3. HSX / PSX TOOL CABLE

BEIER™ HIGH PERFORMANCE CABLES

for HSX / PSX Tools

FROM AMT ALFING MONTAGETECHNIK


Replacement Cables for AMT ALFING MONTAGETECHNIK part number:

700 583XX

Benefit now from optimized cable performance and effective cost reduction.



In comparison to conventional DC Tool Cables, our products stand out with three crucial advantages:



three-times higher product life



improved ergonomics



much more affordable


BEIER™ High Performance Replacement Cables are available in the following versions:

BEIER™ Regular

for AMT HSX / PSX

AMT - 700 583XX / R

BEIER™ Swivel

for AMT HSX / PSX

AMT - 700 583XX / S

BEIER™ 90° Swivel

for AMT HSX / PSX

AMT - 700 583XX / 90S


BEIER™ 120° Swivel

for AMT HSX / PSX

AMT - 700 583XX / 120S





BEIER™ Swivel Technology

Patent Pending

+/- 170° twisting capability

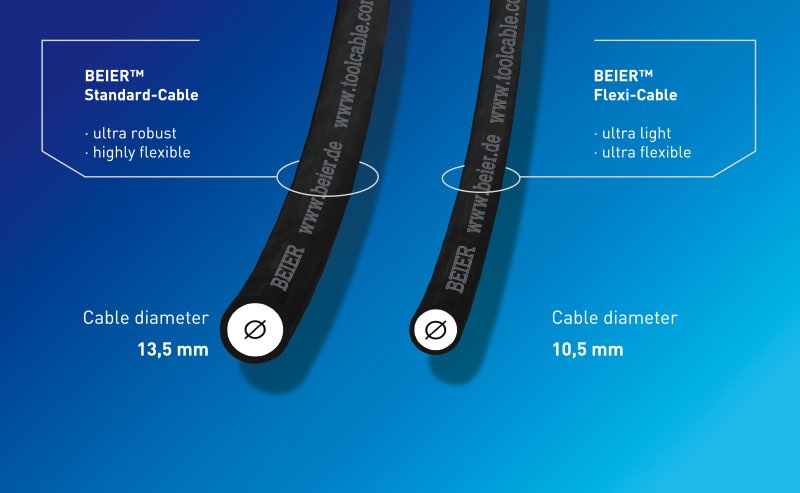

left: BEIER™ Standard Cable

Cable diameter 13.5 mm

right: BEIER™ Flexi Cable

ultra light & flexible

Cable diameter 10.5 mm


BEIER™ REPLACEMENT-VERSIONS:
Please see all available BEIER™ cable versions on the examplary basis of a cable with the length of 5 meters.
We have all common lengths on stock and can supply any special lengths on short notice.

Example for BEIER™ Article-No.-Structure


BEIER™ Item Number

Version

Description


AMT - 700 58305 / R

Regular

Straight, non-rotatable


AMT - 700 58305 / S

Swivel

Straight, +/- 170° rotatable


AMT - 700 58305 / 90S

90° Swivel

90° angled, +/- 170° rotatable


AMT - 700 58305 / 120S

120° Swivel

120° angled, +/- 170° rotatable


AMT - 700 58305 / RF

Regular Flexi

Straight, non-rotatable, Flexi Cable


AMT - 700 58305 / SF

Swivel Flexi

Straight, +/- 170° rotatable, Flexi Cable


AMT - 700 58305 / 90SF

90° Swivel Flexi

90° angled, +/- 170° rotatable, Flexi Cable


AMT - 700 58305 / 120SF

120° Swivel Flexi

120° angled, +/- 170° rotatable, Flexi Cable


TECHNOLOGIES TO YOUR ADVANTAGE: The SWIVEL Cable

There are applications in which the tool needs to be twisted in different directions. When twisting the tool, the cable will disturb the operator’s freedom of movement as well as the continuous rotation will affect the lifetime of the cable.



We have developed our patented Swivel Technology to cope with this difficulty:



The Swivel Cable is equipped with a rotative tool connector, which absorbs the rotation of a connected tool in a turning radius of

+/- 170 degrees. This enables to operator to twist the tool without perceiving the resistance of a non-rotative cable.



Benefits at a glance:

  • +/- 170° Twisting capability meaning maximum freedom of movement
  • Ergonomical: reduced stress for operator and material
  • Diversity to meet all requirements: Swivel Cables are available with three different connector
    housings: Straight ( Version Code: / S ), 90° Angle ( / 90S ) and 120° Angle ( / 120S )

Flexi Cables were developed especially for applications, in which flexibility and low weight are crucial. Thanks to the optimized design with halved wire diameters, a Flexi Cable is a product with outstanding operator-friendliness. A cable comparable to a skipping rope.

Flexi Cables are barely perceptible while operating, at the same time offering you the decisive advantage of long term maintenance-free operations.



Benefits at a glance:

  • Light as a feather for ultimate operator comfort
  • Ultra flexible for maximum freedom of movement
  • Sustainable: minimized weight and less maintenance efforts compared to battery driven tools
  • Lowest overall maintenance costs: BEIER™ round cable designed for maximized maintenance-free product life

Our recommendation for maximized cost-savings:



Let your damaged cables be repaired and optimized within only a few working days.

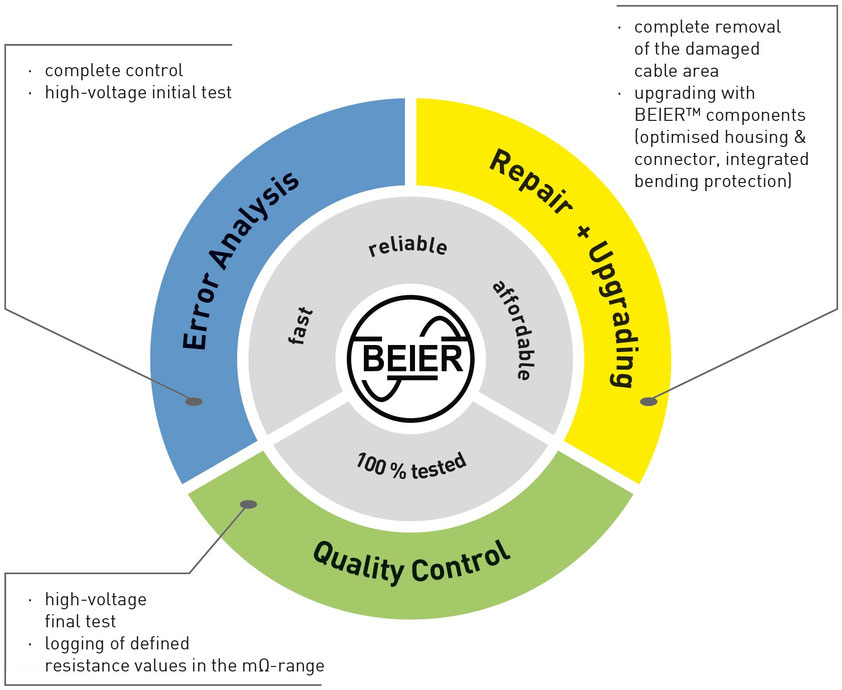

BEIER™ HIGH PERFORMANCE CABLE REPAIR

Our repair service comprises:

  • Complete control including high-voltage test
  • Complete removal of the damaged cable area
  • Tool Connector Upgrade with optimized BEIER™ housing and connector components
  • BEIER™ Integrated Bending Protection: robust, high flexible and ergonomic
  • High-voltage final test with logging of resistance values in the mΩ-range

You will receive the repaired tool cable with consideration for your individual needs normally within a few business days.

damaged OEM Cable before repair

Cable Type: AMT Alfing Montagetechnik HSX / PSX 700 583XX

OEM Cable after BEIER™ Repair: Version Regular

repaired & upgraded with optimized connector & housing parts as well as integrated bending protection

Your advantages at a glance:

Better performing than any OEM cable - yet longer lasting, more cost-efficient and essentially more sustainable than a battery tool:

  • Optimized cable design
  • Improved product life
  • Improved ergonomics
  • Swivel Cables for unrestricted movement
  • Flexi Cables for ultimate operator comfort
  • Improved safety through multiple-shielding
  • Sustainable: long lasting & repeatedly repairable
  • Extension of the maintenance intervals
  • Cheaper prices
  • Delivery times: ultra fast & flexible

  • Less procurement expenses
  • Less storage costs

  • Lowered production downtimes
  • Repair instead of expensive new purchase

High Performance Cables mean the most economic solution within the field of DC Assembly Tools:

Unrivalled product life at cheapest prices, offering ultimate operator comfort thanks to our rotative Swivel Connectors and our ultra-light Flexi Cables. In contrast to battery tools, the combination of corded tools and BEIER™ High Performance Cables is unrivalled when it comes to sustainability, as it allows many years of maintenance-free operations thanks to the optimized cable design. In the event of mechanical damage, our cables can be easily serviced at very economical pricing for repeated long-term operations free of maintenance.

The BEIER™ DC Tool Cable Repair Service: fast, reliable, affordable

If your old OEM cable can no longer be repaired, we will offer you an attractive scrapping discount for a BEIER™ High Performance Replacement Cable of your choice.


Your advantage:



With the BEIER™ Cable Repair Service you can save more than 65% of the new procurement price for OEM-Cables (depending on the cable type). At the same time we can increase the product life considerably thanks to our optimized Tool Connector and integrated bending protection.

Minimized Costs


Maximized Performance


Comparison of average price-performance ratio:

PDF product brochure:

Download
High Performance Replacement Cable and Cable Repair for AMT HSX / PSX
700 583XX
BEIER_product-brochure_HPC+Repair_AMT_HS
Adobe Acrobat Document 2.1 MB
Download

Direct Inquiry

Note: Please fill out the fields marked with an asterisk.

Additional Information:

AMT Alfing Montagetechnik Replaceable Original Cables

With BEIER™ High Performance Cables for AMT Alfing Montagetechnik HSX / PSX Nutrunners you can replace the following AMT Part Numbers:



HSX / PSX Tool Cables



700 58303

OEM tool cable for HSX / PSX Series DC Tools with AMT Part Number 700 58303 and cable length 3 m.



700 58305

OEM tool cable for HSX / PSX Series DC Tools with AMT Part Number 700 58305 and cable length 5 m.



700 58307

OEM tool cable for HSX / PSX Series DC Tools with AMT Part Number 700 58307 and cable length 7 m.



700 58310

OEM tool cable for HSX / PSX Series DC Tools with AMT Part Number 700 58310 and cable length 10 m.



700 58315

OEM tool cable for HSX / PSX Series DC Tools with AMT Part Number 700 58315 and cable length 15 m.

AMT Compatible DC Nutrunners

Angle Nutrunner HSX / PSX:

Type Ident-no.
HSX1015WV14 70058335
HSX1025WV38 70058336
HSX1032WV38 70058337
HSX1039WV38 70058338
HSX1050WV38 70058339
HSX1064WV38 70058340
HSX1100WV12 70058341





HSX2064WV38 70058320
HSX2100WV12 70058342
HSX2150WV12 70058343
HSX2200WV34 70058344
HSX2250WV34 70058345

Inline Nutrunner HSX / PSX:
Type Ident-no.
HSX1015ZV38 70058346
HSX1030ZV38 70058347
HSX1040ZV38 70058348





HSX2087ZV12 70058349
HSX2131ZV12 70058350





HSX1015ZF50 70058351
HSX1030ZF50 70058352
HSX1040ZF50 70058353





HSX2087ZF50 70058354
HSX2131ZF50 70058355

Pistol-Grip Nutrunner HSX / PSX:
Type Ident-no.
PSX1015ZV38 70058391
PSX1025ZV38 70058392
PSX1015ZH14 70058393

PSX1015ZV38S 70058394
PSX1025ZV38S 70058395
PSX1015ZH14S 70058396

Complete Nutrunner HSX / PSX:
Type Ident-no.
HSX1015WV14T 70058356
HSX1025WV38T 70058357
HSX1032WV38T 70058358
HSX1039WV38T 70058359
HSX1050WV38T 70058360
HSX1064WV38T 70058361
HSX1100WV12T 70058362

HSX1015WV14B 70058363
HSX1025WV38B 70058364
HSX1032WV38B 70058365
HSX1039WV38B 70058366
HSX1050WV38B 70058367
HSX1064WV38B 70058368
HSX1100WV12B 70058369

HSX1015WV14S 70058370
HSX1025WV38S 70058371
HSX1032WV38S 70058372
HSX1039WV38S 70058373
HSX1050WV38S 70058374
HSX1064WV38S 70058375
HSX1100WV12S 70058376

HSX1015WV14GF 70058377
HSX1025WV38GF 70058378
HSX1032WV38GF 70058379
HSX1039WV38GF 70058380
HSX1050WV38GF 70058381
HSX1064WV38GF 70058382
HSX1100WV12GF 70058383
AMT compatible Controllers

SMX100:

Type Ident-no.
SMX100-40-0001-A 70085290
SMX100-60-0001-A 70085310

SMX200:
Type Ident-no.
SMX200-40-0101-A 70085330
SMX200-60-0101-A 70085350

SMX300:
Type Ident-no.
SMX300-40-0401-A 70085370
SMX300-60-0401-A 70085390

SMX400:
Type Ident-no.
SMX400-40-0401-A 70085410
SMX400-60-0401-A 70085430
DC Assembly Systems related topics

For further assistance and easier orientation, please see below a list of related topics and keywords within the field of DC Assembly Systems:
DC Tool Cable · Motor Cable · Torque Cable · Nutrunner Cable · Srewdriver Cable · Controller Cable · DC Nutrunner · DC Power Tools · DC Electric Tools · DC Electric Nutrunner · Industrial Tools · DC Electric Screwdriver · DC Tools · Tightening Tools · Screwdriver · Assembly Tools · Fastening Tools · Spindle · Fixtured Spindle · Extension Cable · Power Tools · Cable Manufacturer · W.L. Gore Cable · Special Cable · Automotive Industry

Custom button
you can edit this section directly in HTML ( templates > custom template > html )
About | Privacy Policy | Cookie Policy | Sitemap
Log out | Edit
  • Previous
  • Next
  • Scroll to top
