BEIER™ HIGH PERFORMANCE CABLES FOR

Stanley EA / EB Tools

Replacement Cables for STANLEY part numbers:

20C1073XX / 20C1076XX / 20C1077XX

Offering up to three-times higher product life & improved ergonomics, while being much more affordable than OEM Cables.

BEIER™ High Performance Replacement Cables are available in the following versions:

BEIER™ Regular

for Stanley EA / EB

ST - 20C1076 XX / R

BEIER™ Swivel

for Stanley EA / EB

ST - 20C1076 XX / S

BEIER™ 90° Swivel

for Stanley EA / EB

ST - 20C1076 XX / 90 S

BEIER™ 120° Swivel

for Stanley EA / EB

ST - 20C1076 XX / 120 S

BEIER™ Swivel Technology

Patent Pending

+/- 170° twisting capability

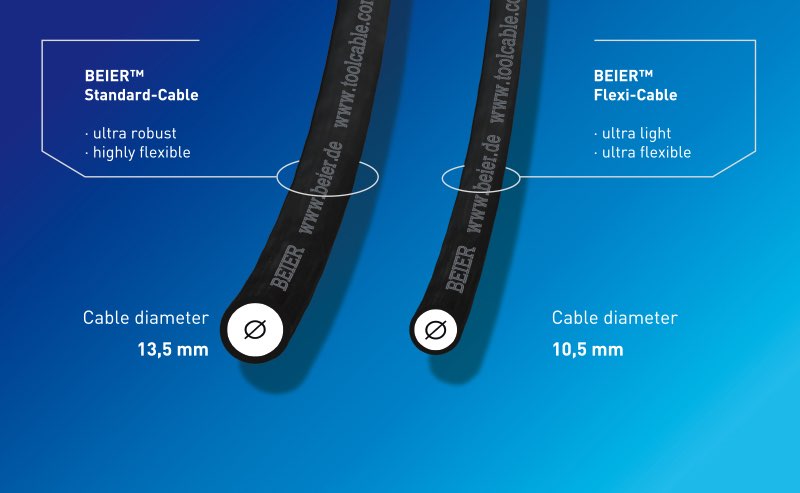

left: BEIER™ Standard Cable

Cable diameter 13.5 mm

right: BEIER™ Flexi Cable

ultra light & flexible

Cable diameter 10.5 mm

BEIER™ REPLACEMENT-VERSIONS:
Please see all available BEIER™ cable versions on the examplary basis of a cable with the length of 7 meters.
We have all common lengths on stock and can supply any special lengths on short notice.

Example for BEIER™ Article-No.-Structure

BEIER™ Item Number

Version

Description of Tool Connector

ST - 20C1076 07 / R

Regular

Straight, non-rotatable

ST - 20C1076 07 / S

Swivel

Straight, +/- 170° rotatable

ST - 20C1076 07 / 90 S

90° Swivel

90° angled, +/- 170° rotatable

ST - 20C1076 07 / 120 S

120° Swivel

90° angled, +/- 170° rotatable

ST - 20C1073 07 / RF

Regular Flexi

Straight, non-rotatable, Flexi Cable

ST - 20C1073 07 / SF

Swivel Flexi

Straight, +/- 170° rotatable, Flexi Cable

ST - 20C1073 07 / 90 SF

90° Swivel Flexi

90° angled, +/- 170° rotatable, Flexi Cable

ST - 20C1073 07 / 120 SF

120° Swivel Flexi

120° angled, +/- 170° rotatable, Flexi Cable

Your advantages at a glance:

Better performing than any OEM cable - yet longer lasting, more cost-efficient and essentially more sustainable than a battery tool:

Optimized cable design
Improved product life
Improved ergonomics
Swivel Cables for unrestricted movement
Flexi Cables for ultimate operator comfort
Improved safety through multiple-shielding
Sustainable: long lasting & repeatedly repairable

Extension of the maintenance intervals
Cheaper prices
Delivery times: ultra fast & flexible
Less procurement expenses
Less storage costs
Lowered production downtimes
Repair instead of expensive new purchase

High Performance Cables mean the most economic solution within the field of DC Assembly Tools:

Unrivalled product life at cheapest prices, offering ultimate operator comfort thanks to our rotative Swivel Connectors and our ultra-light Flexi Cables. In contrast to battery tools, the combination of corded tools and BEIER™ High Performance Cables is unrivalled when it comes to sustainability, as it allows many years of maintenance-free operations thanks to the optimized cable design. In the event of mechanical damage, our cables can be easily serviced at very economical pricing for repeated long-term operations free of maintenance.

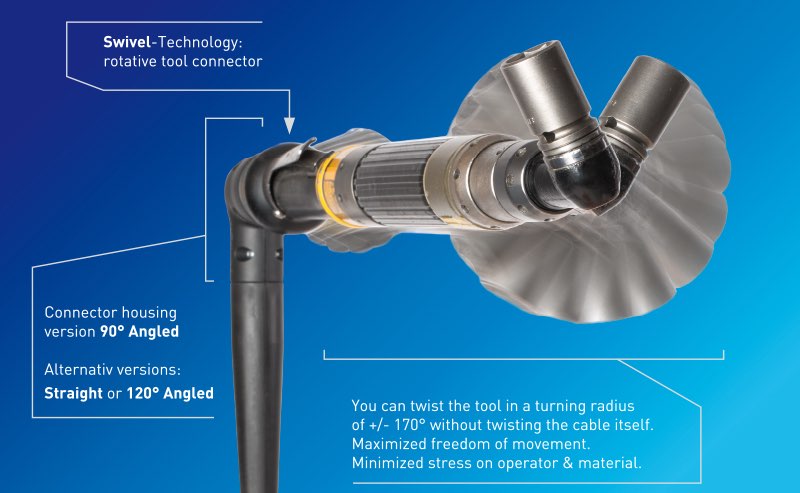

There are applications in which the tool needs to be twisted in different directions. When twisting the tool, the cable will disturb the operator’s freedom of movement as well as the continuous rotation will affect the lifetime of the cable.

We have developed our patented Swivel Technology to cope with this difficulty:

The Swivel Cable is equipped with a rotative tool connector, which absorbs the rotation of a connected tool in a turning radius of

+/- 170 degrees. This enables to operator to twist the tool without perceiving the resistance of a non-rotative cable.

Benefits at a glance:

+/- 170° Twisting capability meaning maximum freedom of movement
Ergonomical: reduced stress for operator and material
Diversity to meet all requirements: Swivel Cables are available with three different connector
housings: Straight ( Version Code: / S ), 90° Angle ( / 90S ) and 120° Angle ( / 120S )

Flexi Cables were developed especially for applications, in which flexibility and low weight are crucial. Thanks to the optimized design with halved wire diameters, a Flexi Cable is a product with outstanding operator-friendliness. A cable comparable to a skipping rope.

Flexi Cables are barely perceptible while operating, at the same time offering you the decisive advantage of long term maintenance-free operations.

Benefits at a glance:

Light as a feather for ultimate operator comfort
Ultra flexible for maximum freedom of movement
Sustainable: minimized weight and less maintenance efforts compared to battery driven tools
Lowest overall maintenance costs: BEIER™ round cable designed for maximized maintenance-free product life

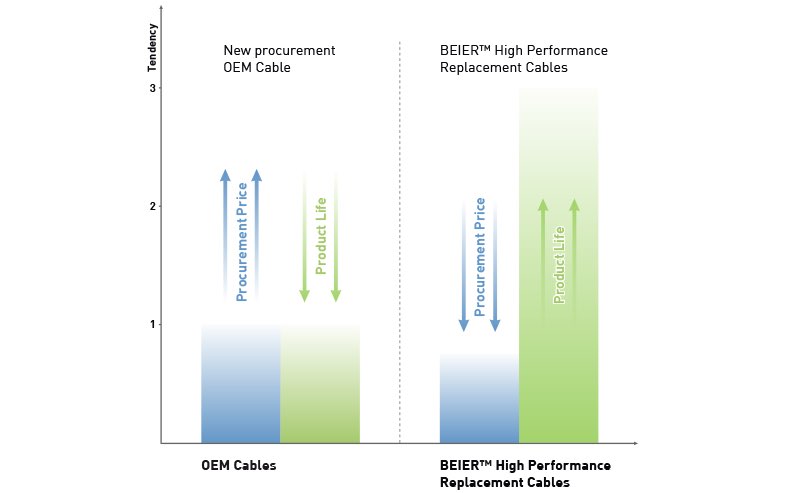

Cost savings through improved performance at more affordable prices:

On average, BEIER™ High Performance Replacement Cables reach a product life of up to three-times higher than OEM cables.

At the same time, our cables are normally much more affordable than comparable OEM cables.

PDF product brochure:

Stanley EA / EB

BEIER_product-brochure_HPC+Repair_Stanle

Adobe Acrobat Document 1.8 MB

Download

Additional Information:

STANLEY Replaceable Original Cables

With BEIER™ High Performance Cables for STANLEY EA / EB Nutrunners you can replace the following STANLEY Part Numbers:

EA / EB Tool Cables

20C107301

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107301 and cable length 1 m.

20C107303

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107303 and cable length 3 m.

20C107305

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107305 and cable length 5 m.

20C107307

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107307 and cable length 7 m.

20C107310

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107310 and cable length 10 m.

20C107601

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107601 and cable length 1 m.

20C107603

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107603 and cable length 3 m.

20C107605

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107605 and cable length 5 m.

20C107607

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107607 and cable length 7 m.

20C107610

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107610 and cable length 10 m.

20C107701

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107701 and cable length 1 m.

20C107703

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107703 and cable length 3 m.

20C107705

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107705 and cable length 5 m.

20C107707

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107707 and cable length 7 m.

20C107710

OEM tool cable for EA / EB Series DC Tools with Stanley Part Number 20C107710 and cable length 10 m.

STANLEY Compatible DC Nutrunners for Stanley EA

BEIER™ High Performance Cables for EA Tools are 100% compatible to STANLEY DC Nutrunners / Part Numbers:

Lever Straight:
· EA23LB-7 · EA23LB · EA33LB-15 · EA33LB · EA34LB1 · EA23LB-12 · EA23LB21 · EA23LB-31 · EA33LB-15 · EA33LB-25 · EA33LB-32 · EA33LB-40 · EA34LB1-60 · EA34LB1-74 · EA34LB1-100

Lever Angle:
· EA23LA10-6 · EA23LA13 · EA23LA14 · EA33LA18 · EA33LA19-48 · EA33LA19-60 · EA34ALA19-80 · EA34LA22 · EA23LA13-10 · EA23LA13-18 · EA23LA14-22 · EA23LA14-31 · EA33LA14-29 · EA33LA14-35 · EA33LA18-40 · EA33LA18-46 · EA34LA19-80 · EA34LA22A-100 · EA34LA22A-120

Lever Flush Angle:
· EA23LA13 · EA23LA14 · EA33LA19 · EA34LA19 · EA34LA22 · EA23LA13-10 · EA23LA13-18 · EA23LA14-22 · EA23LA14-31 · EA33LA14-29 · EA33LA14-35 · EA33LA18-40 · EA33LA18-46 · EA33LA19-48 · EA33LA19-60 · EA34LA19-80 · EA34LA22A-100 · EA34LA22A-120

Lever Crowfoot:
· EA23LC8-16 · EA23LC69-15 · EA33LC69-27 · EA23LC379-30 · EA23LC246-20 · EA33LC246-38 · EA33LC800-27 · EA23LC13-18 · EA33LC13-30 · EA33LC29-35 · EA34LC29-45 · EA34LC10 · EA34lc10-49 · EA34lc10-88

Lever Tubenut:
· EA33LT252 · EA33LT346-25 · EA33LT801-25 · EA33LT74-30 · EA23LT264 · EA33LT264 · EA34LT23-41 · EA34LT99 · EA33LT252-22 · EA33LT346-25 · EA23LT264-22 · EA33LT264-44 · EA34LT99-62

Lever Hold & Drive:
· EA33LH18V1 · EA34LN22V1 · EA34LH22V1 · EA33LH18V2 · EA34LN22V2 · EA34LH22V2 · EA33LH18V1-46 · EA33LH18V2-46 · EA34LH22AV1-77 · EA34LH22AV2-77 · EA34LN22AV1-77 · EA34LN22AV2-77 · EA34LH22AV1-110 · EA34LH22AV2-110 · EA34LN22AV1-110 · EA34LN22AV2-110

STANLEY Compatible DC Nutrunners for Stanley EB

BEIER™ High Performance Cables for EB Tools are 100% compatible to STANLEY DC Nutrunners / Part Numbers:

Angle Lever:
· EB02LA10-4 · EB02LA10-6 · EB12LA13-8 · EB12LA13-13 · EB22LA13-13 · EB22LA13-18 · EB22LA15-24 · EB33LA15-27 · EB33LA18-35 · EB33LA15-40 · EB33LA19-40 · EB33LA18-48 · EB33LA19-60 · EB44LA19-55 · EB34LA19-70 · EB34LA22A-80 · EB44LA22A-80 · EB34LA22A-115 · EB44LA22A-120 · EB55LA26-120 · EB55LA26-160 · EB45LA26-165 · EB45LA26-220 · EB55LA26-220 · EB55LA32-300 · EB55LA32-400

Pistol Grip:
· EB02PB-4 · EB02PB-6 · EB12PB-6 · EB12PB-9 · EB12PB-14 · EB22PB-16 · EB33PB-28 · EB33PB-40 · EB34PB1-55 · EB44PB1-75 · EB44PB1-105

Inline Push-to-Start (PTS) Lever:
· EB02LP-4 · EB02LP-6 · EB12LP-6 · EB12LP-9 · EB12LP-14 · EB02LB

Inline Lever:
· EB02-LB-4 · EB02LB-6 · EB12LB-6 · EB12LB-9 · EB12LB-14 · EB22LB-16 · EB33LB-28 · EB33LB-40 · EB34LB1-55 · EB44LB1-80 · EB44LB1-120 · EB45LB2-140 · EB55LB2-170 · EB45LB2-190 · EB55LB2-250 · EB55LB3-320 · EBLB4-460 · EB55LB4-620 · EB55LB5-800 · EB55LB5-1100 · EB55LB5-1500 · EB55LB5-2000

Crowfoot Lever:
· EB12LC8-8 · EB12LC106-8 · EB12LC8-13 · EB12LC106-13 · EB22LC8-16 · EB33LC13-22 · EB33LC69-27 · EB33LC13-30 · EB33LC246-33 · EB34LC298-49 · EB34LC10-58 · EB44LC10-88 · EB44LC31-88 · EB44LC31-102 · EB55LC21-216

Tubenut Lever:
· EB22LT252-25 · EB33LT346-25 · EB33LT74-30 · EB33LT375-41 · EB34LT150-30 · EB34LT23-41 · EB34LT99-62 · EB44LT20-102

Hold and Drive Lever:
· EB33LH18V1-46 · EB34LH22AV1-77 · EB34LH22AV1-110 · EB45LH26V1-155 · EB45LH26V1-220 · EB55LH32V1-285 · EB55LH32V1-380
· EB33LH18V2-46 · EB34LH22AV2-77 · EB34LH22AV2-110 · EB45LH26V2-155 · EB45LH26V2-220 · EB55LH32V2-285 · EB55LH32V2-380

STANLEY compatible Controllers

BEIER™ High Performance Cables for STANLEY EA / EB Tools are 100% compatible to STANLEY Controllers / Part Numbers:

Stanley EA

Single Spindle Alpha Controller:

· QA1001-XDV · QA1001-XDX · QA1001-XPV · QA1001-XPX · QA1001-XXV · QA1001-XXX · QA1001-MDV · QA1001-MDX · QA1001-MPV · QA1001-MPX · QA1001-MXV · QA1001-MXX

Stanley EB

Advanced Single Spindle Controller:

· QB3001-XXV · QB3001-XDV · QB3001-XPV · QB3001-XEV · QB3001-XNV · QB3001-XGV

Expert Multiple Spindle Controller:

· QB4001-XXV · QB4001-XDV · QB4001-XPV · QB4001-XEV · QB4001-XNV · QB4001-XGV

Node Single Spindle Controller:

· QB0001
